DD-DB1-AL204A-GW

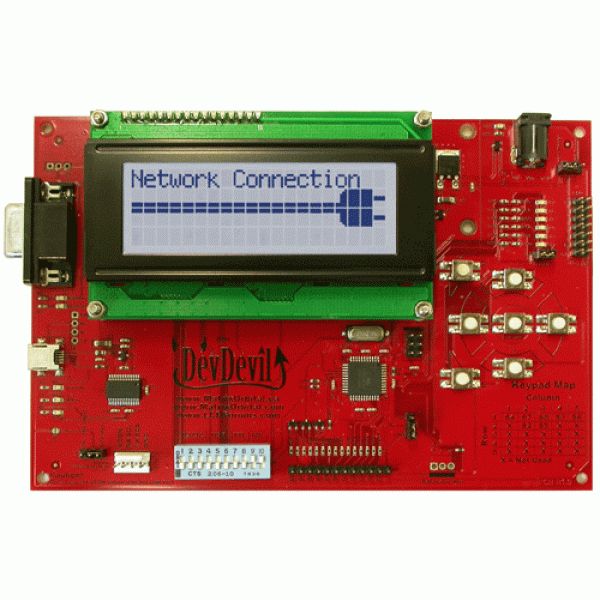

Development Made Easy! The Matrix Orbital DevDevil is a product development board which provides all of the functionality of an alphanumeric display in a project development friendly package. The DevDevil opens the door to a world of exciting display possibilities!

• Package includes:
  • One 4 row by 20 column character White background/Grey text LCD display
  • Mini-USB onboard connector with USB cable
  • 6 general purpose outputs (GPOs)
  • 3 LED GPO’s on board
  • Dallas one wire support
  • 7 physical buttons
  • 5 x 5 keypad input found on their production counterparts

• RS232, USB, TTL, and I2C protocols offered through a dynamic switch block, standard headers for all protocols are offered on the board, as well as a variety of input power options.
• Powering up the DevDevil can be as easy as connecting to the mini-USB connector on board. Alternate power options include an AC adapter, power through the DB9 header, and 4 pin data/power input.
