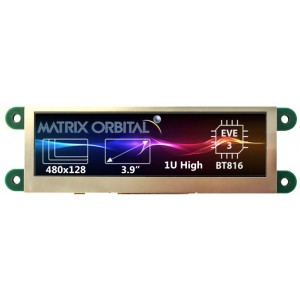

EVE3x-39A

Description

USB Drivers for All USB displays

• EVE2, EVE3, EVE4: Including the EVE2-USB2SPI, EVE-USB2SPI-KIT-B and EVE3x and EVE4x displays

• LK/VK/OK: LCD, VFD, OLED Series
• ELK/EGLK: External LCD's
• GLK/GLT: Graphic LCD's
• GTT: Intelligent UART TFT Series
• MOU: All MOU Series


32/64 Bit USB Drivers Version 2.12.28.1 For Windows 7, 8, 8.1, 10 and 11 and Windows Server 2008 R2, 2012 R2, and 2016.

Notes

Based on 2.12.28 Drivers from FTDI.

Description

EVE Asset Builder (EAB) 2.11.0

Notes

Feature Updates


ASTC Encoder
• Users can now select any version of astcenc for improved flexibility.
• The ASTC encoder has been updated to version 4.x.
• Added an ASTC Encoder link in the Info tab for quick access.

Font Converter
• The output file _charmap.txt has been removed for a cleaner output.

Flash Utilities
• A separate option for BT817A has been added for better usability.
• Added subtype for animation to enhance animation support.

Animation Converter
• Reversed the arrangement of .data and .object for user convenience.
• Removed the .anim file from the output folder.

Bin2C
• Aligned the converted value to the left for improved readability.
Image Converter
• Improved the generated SampleApp for DXT1 bitmap generation.
Custom Touch Compiler
• Added a new compiler for BT88X/FT81X.
• Included new macros and pseudo code in the Read Me tab.
Installer
• The setup file is now signed with a company certificate.
Resolved Issues

Animation Converter
• Resolved the issue associated with 2-frame GIF input.
• Addressed the bug that occurs when disabling the Tile Size.

Flash Programmer
• Corrected the text argument of Eve chip generation.
Font Converter
• Fixed the bug related to the wrong baseline in Font Converter.

Sample App
• Resolved the issue of excessive restore_context() command.
Image Utilities
• The layout of the Input File is no longer cut at the top.

Description

EVE3 & EVE4 Programing Guide v2.4

BRT_AN_033 Version 2.4
Issue Date: 17-11-2023

Description

A C library for a Matrix Orbital EVE2, EVE3 or EVE4 SPI TFT displays.

Description

Windows EVE2, EVE3 AND EVE4 TEST DEMO SOFTWARE

This demo uses an EVE USB to SPI module to allow a simple Windows application to test your EVE display

A quick and easy sanity check to ensure that your Matrix Orbital EVE2, EVE3 or EVE4 SPI TFT Display and touch hardware works properly.

Windows Support Tool

Description

This is a sample application for Windows that will allow bitmaps to be displayed directly onto a Matrix Orbital EVE2, EVE3 or EVE4 Series Display

To use this application you will require an USB 2 SPI module or EVE3x or EVE4x USB version TFT Display.

Description

BASIC EVE STM32 Example Code

A quick and easy sanity check to ensure that your Matrix Orbital EVE2, EVE3 or EVE4 SPI TFT Display and touch hardware works properly.

This demo was developed on an STM32-Nucleo-F104RE but should easily transfer over to other variants

Description

Basic EVE Arduino UNO Example Code


Written for an EVE2 or EVE3 or EVE4 running on an Arduino UNO.

Description

Example code for the EVE on a ESP with the WEMOS D1 mini. Most models of the ESP32/ESP8266 should work, but are untested.

Description

3D Model of the EVE3x-39A-TPC

Description

EVE3x/4x-70A/G Hardware manual

Description

EVE3x-39A Dimensional Drawings

Description

Change on the adhesive used on oversized PCAP 'G' touch panels.

Description

EVE3x-39A/G Manual
