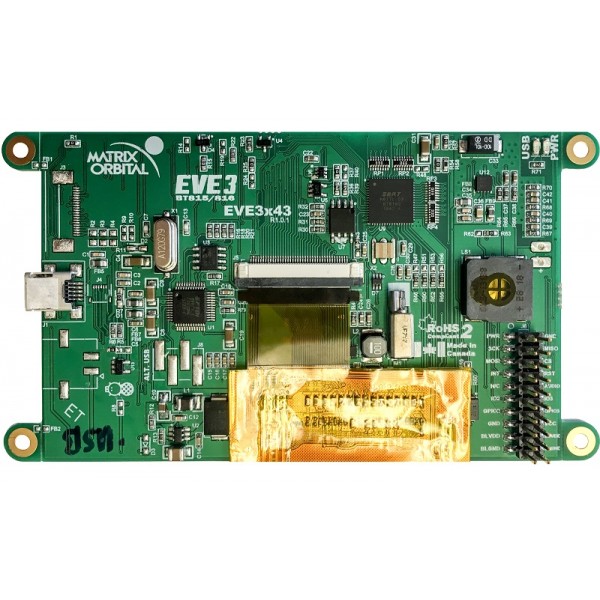

EVE3x-43A-IPS-800480A
-30C to 85C Extended Temp Optically Bonded IPS TFT Sunlight Readable Touch Screen Display 4.3" 800x480
Options Required : Select one from each
Price may change based on options selected.
- Model: EVE3x-43A-IPS-800480A
- Availability: In Stock (Build to Order)
- $106.48USD
The Matrix Orbital EVE3x SPI or USB IPS TFT utilizes the FTDI/Bridgetek BT815 or BT816 EVE (Embedded Video Engine) to create fast and economical HMI systems. With built in graphics operations, sound synthesizer, digital filter and support for multiple widgets you can create your own stunning screens and interfaces with the EVE Screen Designer software.
Features:
- 4.3" 800x480 SPI IPS TFT
- Optically Bonded Capacitive Touch
- -30oC to 85oExtended Operating temperature range
- 3M Brightness Enhancement Film
- 0mb or 32Mb or 128Mb SPI NOR Flash
- BT815 or BT816 24bit TFT GPU
- 1 MB graphics RAM
- 3.3V or 5-15V
- SPI TFT interface
- Option USB interface with FTDI FT232H
- Optional haptic feedback
- Optional speaker
- Integrated backlight PWM LED Driver
- Standard 20 Pin Connector & 2x10 IDC Connector
- Mono 8-bit linear audio wave playback
- SPI and QSPI communication protocol
- Supports multiple widgets
- Supports landscape or portrait orientations
- Fast and easy development
- Designed, supported and Made in CANADA
- Long life cycle
- Customer silk screening available
- Semi-custom designs available
- Long life production
- Backed by Matrix Orbital's decades of research and development
| Module | |
| Family/Series | EVE |
| Module Width (mm) | 105.5 |
| Module Height (mm) | 67.2 |
| Screen | |
| Diagonal Screen Size (in) | 4.3 |
| Display Type | IPS TFT - Color |
| Backlight Type | LED, 800 nit Sunlight Readable |
| Active Area Width (mm) | 95.04 |
| Active Area Height (mm) | 53.86 |
| Resolution Width (Pixels) | 800 |
| Resolution Height (Pixels) | 480 |
| Pixel Pitch Width (mm) | |
| Pixel Pitch Height (mm) | |
| Font | Multilingual |
| Viewing Direction | Free |
| Viewing Angle | All |
| HMI | |
| Touchscreen | None, Capacitive |
| Keypad | None |
| Keys | None |
| Haptic Feedback | Yes |
| Audio Feedback | Speaker |
| GPO's | 4 |
| Advanced GPO's | None |
| DOW | None |
| Integrated LED's | None |
| Graphic Memory | 1MB |
| Hardness | 6H Capacitive |
| Electrical | |
| Interface | SPI, QSPI, USB |
| Command Protocol | EVE3 |
| Controller | BT815, BT816 |
| Backlight Driver | Integrated |
| Minimum Voltage (Vdc) | 3.3 |
| Typical Voltage (Vdc) | 3.3 or 5-15 |
| Maximum Voltage (Vdc) | 15 |
| Header | Standard |
| Environmental | |
| Min. Operating Temp. (°C) | -30 |
| Max. Operating Temp. (°C) | 85 |
| Min. Storage Temp. (°C) | -40 |
| Max. Storage Temp. (°C) | 85 |
Downloads | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| EVE Software |
 EVE Asset Builder Setup-2.11.0_rc2 | 2.11.0RC2 | 121.62MiB | ||||
| USB Drivers |
 32/64 Bit USB Drivers 2.12.28.1 | 2.12.28.1 | 1.61MiB | ||||
Application Notes | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| EVE Series |
 BT81X-Series-Programming-Guide_v2.4.pdf | 2.4 | 3.01MiB | ||||
| EVE Series | EVE C Library | -1B | |||||
| EVE Series | Windows EVE Test Demo Software | -1B | |||||
| EVE Series | Windows to EVE Bitmap viewer | -1B | |||||
| EVE Series | STM32 EVE Example Code | -1B | |||||
| EVE Series | Arduino EVE UNO Example Code | -1B | |||||
| EVE Series | ESP32 EVE Example Code | -1B | |||||
Documents | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| EVE Series |
EVE3x-43A-IPS-800480A R1.0.3.zip | 7.89MiB | |||||
| EVE3 All Displays | Free Support | -1B | |||||
| EVE3x-43A |
EVE3x-43A-IPS-800480A R1.0.3.PDF | 1.06MiB | |||||
