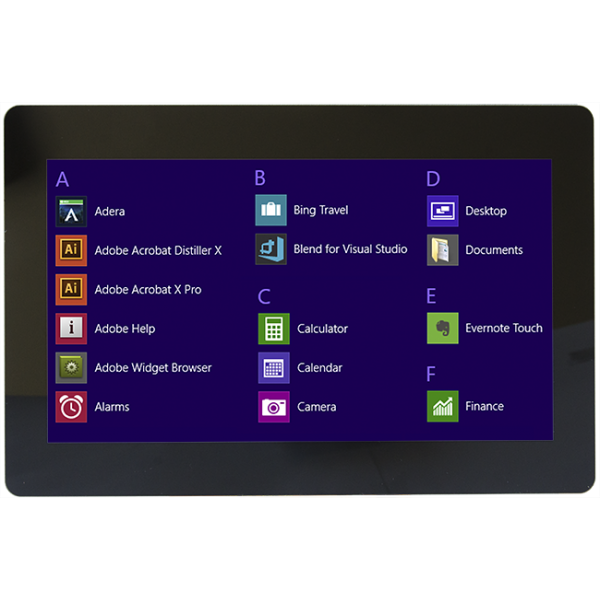

HTT101G-IPS-1024600W
10.1" 1024x600 Graphic IPS TFT HDMI IPS display that features a full color with Capacitive Touchscreen
The HTT101G-IPS-1024600W is a 10.1 inch Embedded HDMI IPS TFT HMI plug and play display that features a full color 1024x600 10.1" HDMI TFT, automatic resolution detection and a 24bit DVI/HDMI interface. The resistive, capacitive, or non-touch modules are compatible with a wide range of systems including: Raspberry Pi, Windows, iMX, Linux and BeagleBone. From the hobbyist to the high volume industrial application, the HTT Series was designed to satisfy a wide range of customer application requirements.
Additional Features Include:
- 10.1 inch 1024x600 SWVGA HDMI Graphic IPS TFT Display
- 1000 cd/m2 Daylight readable backlight
- Oversize easy to mount and clean capacitive touch screen
- Oversize dust proof easy to mount and clean capacitive touch screen
- Software Touch Sensitivity up to 2.0mm for Glass and 1.2mm for Acrylic
- Software Backlight Brightness control with Auto Dim feature
- https://github.com/MatrixOrbital/HTT-Utility
- IP64 & IP65 Tested
- Multi-touch Capacitive touch screen
- Multi-touch Digitizer HID
- Horizontal or Vertical headers for easy Panel Mounting
- 5V or 5-35V Power Input
- Operating Temp: -20 to +70C
- 3M 300LSE adhesives
- Semi-Custom designs available
| Module | |
| Family/Series | HTT |
| Module Width (mm) | |
| Module Height (mm) | |
| Screen | |
| Diagonal Screen Size (in) | 10.1 |
| Display Type | IPS TFT - Color |
| Backlight Type | LED, 1000 nit Sunlight Readable |
| Active Area Width (mm) | 222.7 |
| Active Area Height (mm) | 125.3 |
| Resolution Width (Pixels) | 1024 |
| Resolution Height (Pixels) | 600 |
| Pixel Pitch Width (mm) | 0.2175 |
| Pixel Pitch Height (mm) | 0.2088 |
| Font | Multilingual |
| Viewing Direction | All |
| Viewing Angle | 1 |
| HMI | |
| Touchscreen | None, Capacitive |
| Keypad | None |
| Keys | None |
| Haptic Feedback | Yes |
| Audio Feedback | Piezo |
| GPO's | None |
| Advanced GPO's | None |
| DOW | None |
| Integrated LED's | None |
| Hardness | 6H Capacitive |
| Electrical | |
| Interface | HDMI, USB |
| Command Protocol | HDMI |
| Controller | TFP401A+LPC11U23 |
| Backlight Driver | Integrated |
| Minimum Voltage (Vdc) | 4.75 |
| Typical Voltage (Vdc) | 5, 9-35 |
| Maximum Voltage (Vdc) | 35 |
| Header | Horizontal, Vertical |
| Environmental | |
| Min. Operating Temp. (°C) | -20 |
| Max. Operating Temp. (°C) | 70 |
| Min. Storage Temp. (°C) | -30 |
| Max. Storage Temp. (°C) | 80 |
Documents | |||||||
|---|---|---|---|---|---|---|---|
| File Name | Revision | Size | |||||
| File Name | Revision | Size | |||||
| HTT Series |
 HTT101G-IPS-1024600W RevA.STEP | 65.6MiB | Description3D Model for HTT101G-IPS | ||||
| HTT Series |
 HTT101AG-IPS-1024600W-R1.0.pdf | 781.11KiB | DescriptionManual for the HTT101A-IPS-1024600W and HTT101G-IPS-1024600W | ||||
| HTT Series |
HTT101G-IPS-1024600W Rev.A.PDF | 1.11MiB | DescriptionHTT101G-TPC Dimensional Drawings | ||||
