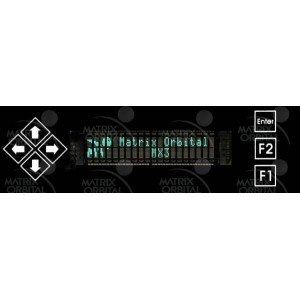

MX310

Description

USB Drivers for All USB displays

• EVE2, EVE3, EVE4: Including the EVE2-USB2SPI, EVE-USB2SPI-KIT-B and EVE3x and EVE4x displays

• LK/VK/OK: LCD, VFD, OLED Series
• ELK/EGLK: External LCD's
• GLK/GLT: Graphic LCD's
• GTT: Intelligent UART TFT Series
• MOU: All MOU Series


32/64 Bit USB Drivers Version 2.12.28.1 For Windows 7, 8, 8.1, 10 and 11 and Windows Server 2008 R2, 2012 R2, and 2016.

Notes

Based on 2.12.28 Drivers from FTDI.

Description

Display Tuner Pro (MOCD#) is an update to our popular uProject testing software for Matrix Orbital displays.  It adds support for new features and displays, including legacy and graphic units, to our established base of features and scripting.  This tool supports all Matrix Orbital Intelligent and Economy Series displays, including the following:

• GLK Series (GLK12232-25-SM, GLK12232-25, GLK19264-7T-1U, GLK24064-25, GLK24064R-25-1U, GLK240128-25)
• GLT Series (GLT12232-SM, GLT24064R-1U, GLT24064, GLT240128)
• GOK Series (GOK12232A-25-SM, GOK12832-25-SM)
• LCD/OLED/VFD Series (LCD0821, LCD2041, OLED0821, OLED2041, VFD2041)
• LK Series (LK162-12, LK162A-4T, LK162B-7T, LK202-25, LK204-25, LK204-7T-1U, LK402-25, LK404-25)
• MOI/MOS/MOU Series (MOS, MOU, XBoard-S, XBoard-U)
• OK Series (OK162-12, OK202-25, OK204-25)
• VK Series (VK162-12, VK202-25, VK204-25, VK246-25)
• And all Legacy Displays

Description

Boot Edit is designed for modification of advanced features of the LK/VK/PK USB and MX series. This is a more advanced version of the Boot Logo software.

Boot Edit allows the setting of these features:

• Custom startup screen using custom characters
• Power on GPO and FAN settings, such as speed, and frequency
• LCD Contrast, backlight brightness and VFD brightness

Compatible Displays:

• LK/VK/PK202-25
• LK/VK/PK202-24-USB
• LK/VK204-24-USB
• MOS-AL/AV/AP202
• MOS-AL/AV204
• All MX series

Only the MX and USB series support the Edit GPO Defaults section.

This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

Description

This basic application allows you to test and set LCD Contrast, Brightness, VFD Brightness, set baudrate and send text to the display.

Compatible Displays:

All LK/VK/PK, MOS, MX and LCD/VFD series.

Description

This simple program to give you hex values for custom characters.

This program allows you to see the hex values per lines for custom characters making implication easier. Simply download the program, uncompress and run. You will require Microsoft .NET Framework Version 1.1, it can be downloaded from here.

This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

For technical discussions and questions, please visit our forums

Description

Boot Logo is designed for modification of the startup screen for some alphanumeric displays with startup screens.

The user has the ability to use the normal text from the display\'s font table, and the 8 custom characters.

Compatible Displays:

LK/VK/PK162-12
LK/VK/PK202-25
LK/VK/PK202-24-USB
LK/VK204-24-USB

MOS-AL/AV/AP202
MOS-AL/AV204

All MX series

This application was written by Ray of LCD Studio. (Ray@lcdstudio.com)

Description

uProject is an advanced testing software for Matrix Orbital displays. It allows testing of nearly all the features and allows test scripting and many other advanced features.

uProject (micro Project) is a series of different tools that should allow the testing of nearly all the features of most of our displays. uProject also features

scripting abilities to speed up testing or changing of a specific feature, such as backlight brightness or contrast.

All LK/VK/PK, MOS, MX and LCD/VFD series.

Description

Legacy USB Drivers for all USB displays, except the GX. Including LK/ELK/VK/PK/OK/GLK/EGLK/GLT/GTT/MOU/X-Board/MX/Eve Series.

Legacy USB Drivers Version 2.08.24-1 For Windows XP, and Vista, and Windows Server 2003, and 2008.

Notes

Based on Legacy 2.08.24 Drivers from FTDI.
